BELT CONVEYORS FOR WASTEWATER TREATMENT AND INDUSTRIAL APPLICATIONSWe manufacture PTN troughed belt conveyors and PTP cleated belt conveyors from OH18N9 acid-resistant stainless steel or ST3S carbon steel. We offer belt widths of 400, 500 and 600 mm; PTN models can be manufactured in lengths of up to 50 m, while PTP models are available in lengths of up to 20 m.
PTN conveyors can operate at an inclination angle of up to 20°, while PTP cleated belt conveyors can operate at angles of up to 35°. We manufacture stationary and mobile versions, as well as covers for the upper belt run for outdoor operation.
We select the feed hopper, installation method and control system individually according to the installation conditions and the process equipment operating with the conveyor.
We manufacture the PTN troughed belt conveyor for process material conveying over distances of up to 50 m. A characteristic feature of this model is the trough-shaped belt profile formed by appropriately arranged idlers. This design keeps the conveyed material in the central section of the belt and is particularly suitable for transporting bulk and fine materials.
PTN troughed belt conveyors can also be used in wastewater treatment plants, including sludge hygienisation systems. In such installations, the units can be used for process conveying of screenings and sludge.

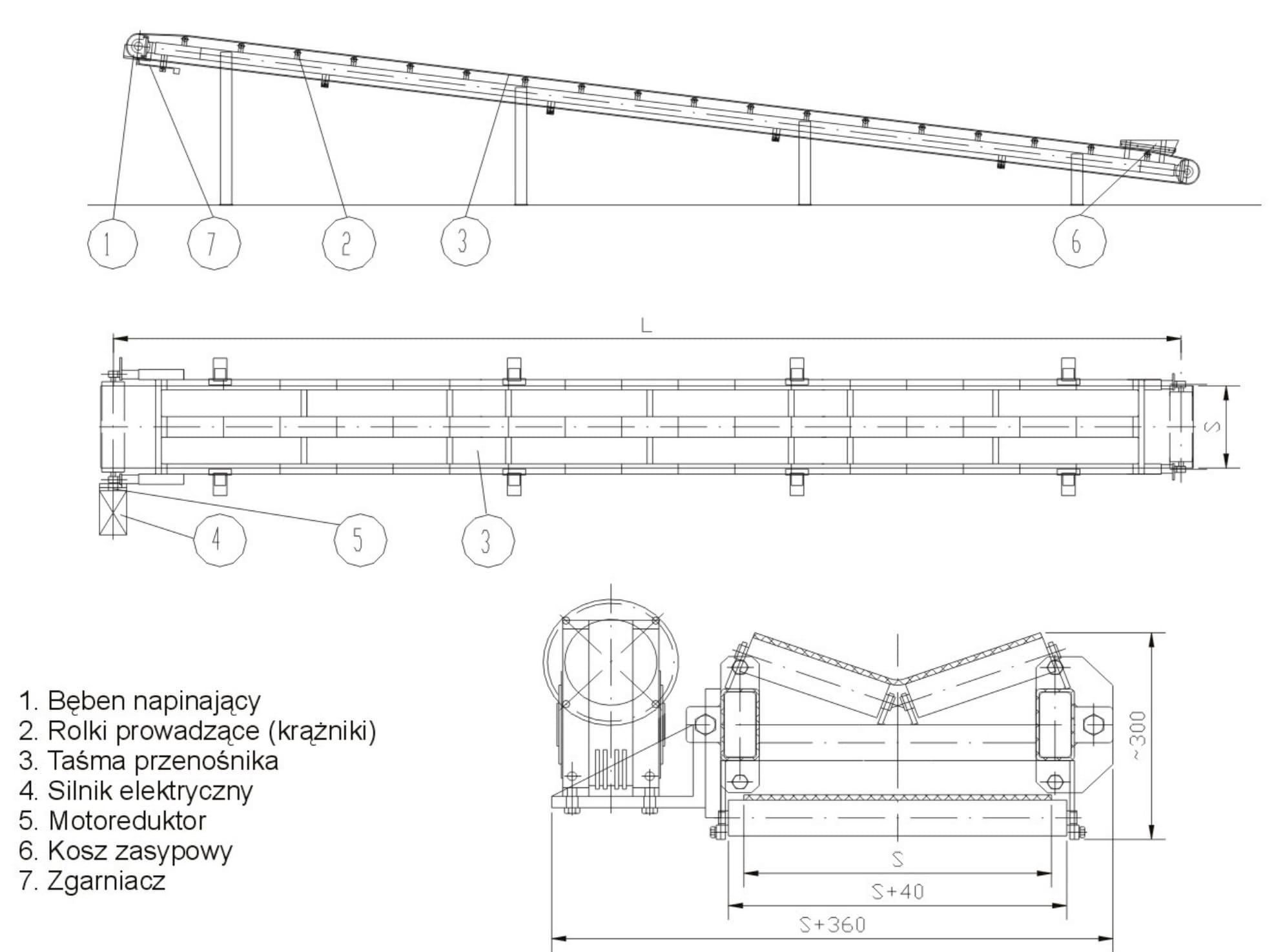

The PTN conveyor consists of components responsible for guiding and driving the belt, feeding the material and maintaining the working surface in the required condition. The conveyor construction includes:
We adjust belt tension by changing the spacing between the drums using adjustment screws. The drive from the electric motor is transmitted through the geared motor, while the belt runs over idlers arranged along the conveyor structure.
| Conveyor type | Belt width | Length | Capacity | Belt speed | Power | Max. inclination angle |
|---|---|---|---|---|---|---|
| PTN 400 | 400 mm | up to 50 m | 8 m³/h | 0.35 m/s | 1.5–5.5 kW | 20° |
| PTN 500 | 500 mm | up to 50 m | 15 m³/h | 0.35 m/s | 2.2–7.5 kW | 20° |
| PTN 600 | 600 mm | up to 50 m | 30 m³/h | 0.35 m/s | 2.2–7.5 kW | 20° |
We offer PTN troughed belt conveyors with belt widths of 400, 500 or 600 mm. Depending on the selected version, the conveyor capacity ranges from 8 to 30 m³/h, while the maximum inclination angle is 20°.
The PTP cleated belt conveyor is designed primarily for installations where a greater conveyor inclination angle is required. The use of a cleated belt enables material to be conveyed at an inclination of up to 35°.
We manufacture PTP cleated belt conveyors for process material conveying in various industries and in wastewater treatment plants. Material is fed into the feed hopper and then conveyed over the required distance by the cleated belt. This type of construction is particularly suitable where material must be transported between points located at different elevations.
The PTP conveyor incorporates components responsible for correct belt guidance, drive and tensioning, as well as controlled feeding of the conveyed material:
We adjust belt tension by changing the spacing between the drums using adjustment screws. The electric motor drives the belt through the geared motor, while the belt runs over idlers.
| Conveyor type | Belt width | Length | Capacity | Belt speed | Power | Max. inclination angle |
|---|---|---|---|---|---|---|
| PTP 400 | 400 mm | up to 20 m | 8 m³/h | 0.35 m/s | 1.5–5.5 kW | 35° |
| PTP 500 | 500 mm | up to 20 m | 15 m³/h | 0.35 m/s | 2.2–7.5 kW | 35° |
| PTP 600 | 600 mm | up to 20 m | 30 m³/h | 0.35 m/s | 2.2–7.5 kW | 35° |
We offer PTP cleated belt conveyors with belt widths of 400, 500 or 600 mm and lengths of up to 20 m. The individual versions provide capacities ranging from 8 to 30 m³/h. The main difference compared with the PTN model is the ability to operate at a greater inclination angle – up to 35° – and the use of a cleated belt designed for this type of conveying.
